Product Name
|

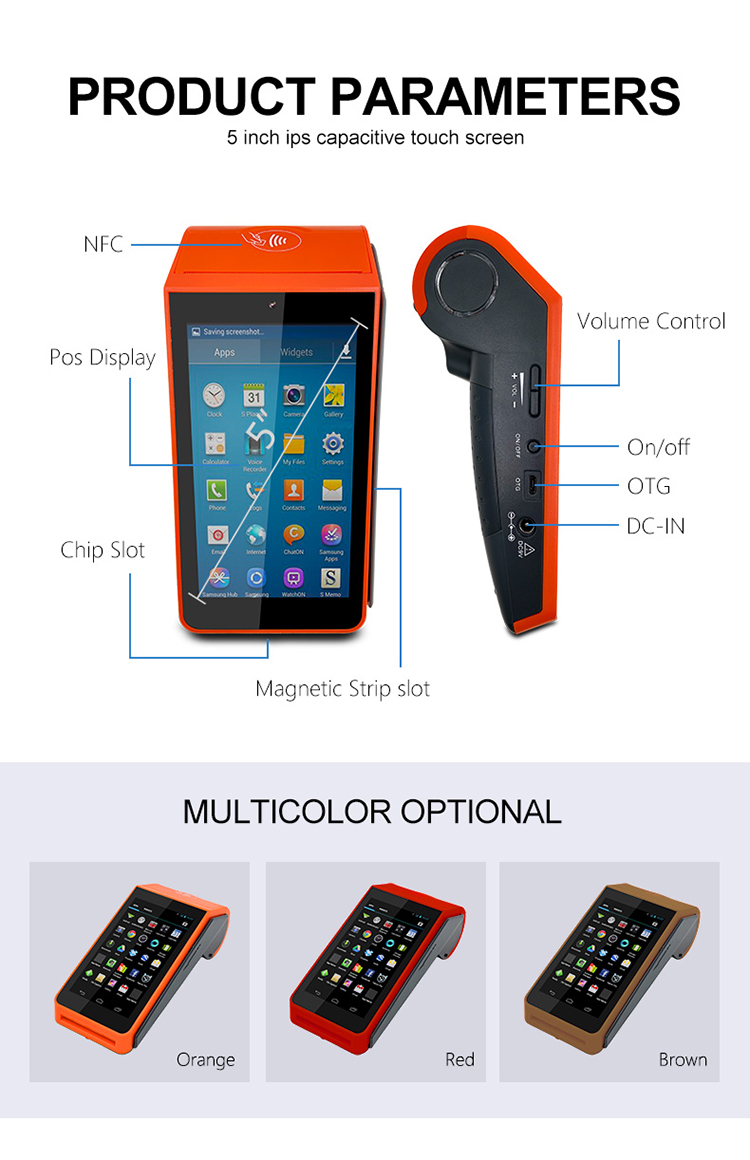

5inch touch screen android handheld pos terminal with QR code scanner IC card reader mobile cloud pos machine thermal printer |
|
Model No.
|
GC088
|
| Application industry |
Restaurant, catering, supermarkets, shops, convenience stores, gas stations, retail department stores, bookstores, etc. |
| Application software |
OS installed, with basic software only, free SDK, POS software not included |
| 2D code decoding |
Built-in 2D code decoding software, based on Android |
| OS |
Android 5.1.1 /Android 7 |
| CPU |
Qualcomm MSM8909, Arm cortexA7, quad core 1.1GHz |
| DDR |
DDR3 1GB (256*16 high speed cache chip, 2 pcs) |
| Storage |
EMMC 8G |
| LCD panel |
5.0 inch RGB TFT, 720*1280 pixel, |
| Capacitive 5-point touch |
| Camera |
5 mega pixel, LED flash light, Auto focusing |
| QR code / barcode reader |
Embedded semi-finished module (Optional) |
| NFC Card Reader |
13.56MHZ contactless, meet standard of ph-ilips M-ifare 1K/4K, ISO/IEC14443A/B, ISO/IEC15693, M-ifare DES-fire, Sony Felica |
| IC Card recognition |
Compatible encrypting IC card, smart IC card, meet ISO7816 standard |
| Audio |
High effient DSP processing,SD sound effect,mono output1.3w |
| Multi-media function |
High effient DSP processing, support mp3, mp4(4k); support picturer play up to 8000*8000 pixel |
| Video Player |
Supports 4K, h.265 hard decoding, 10bits color depth, hdmi2.0, Supports 1080p multi format video decoding, 1080p video coding, and H.264, VP8 and MVC image enhancement processing. |
| keypad |
On/off button and volume increase/decrease button on the left side |
| Printer |
High speed thermal printer, Paper width: 58mm, printing speed: upto 5cm/s,can print text, image, bar code with setting size and font |
| Communication |
SIM Card: meet almost all the telecom operator standard |
| 4G module: 4G module, LTE-FDD/LTE-TDD/TD-SCDMA/WCDMA/GSM/EVDO/CDMA |
| WIFI module: 2.4G IEEE802.11b/g/n compatible with wapi(optional) |
| Blue--tooth module, v 2.0,3.0,4.0, 4.1 |
| Wifi module: IEEE802.11b/g/n compatible with wapi(optional) |
| GNSS: GPS/GLONASS/BEIDOU |
| I/O Interface |
USB: OTG x 1 |
| TF card slot(support upto 32GB) x 1 |
| SIM card: in-line high-quality |
| DC power socket x 1 |
| Casing/Material |
ABS, PCBA, color: red/orange/brown |
| Accessories |
DC power adaptor,input 100-240V, output, 9V, 2.5A |
| Battery |
7.4V 2200mAh polymer battery pack, the barcode scanning time is more than 12h when there is no transmission. |
| Working temperature |
-10℃~50℃ |
| Storage temperature |
-40℃~80℃ |
| Humidty |
95% without sticky |
| Drop standard |
1.5 meter drop on concrete floor |
| ESD protection |
12Kv |
